PETROL WATER PUMP

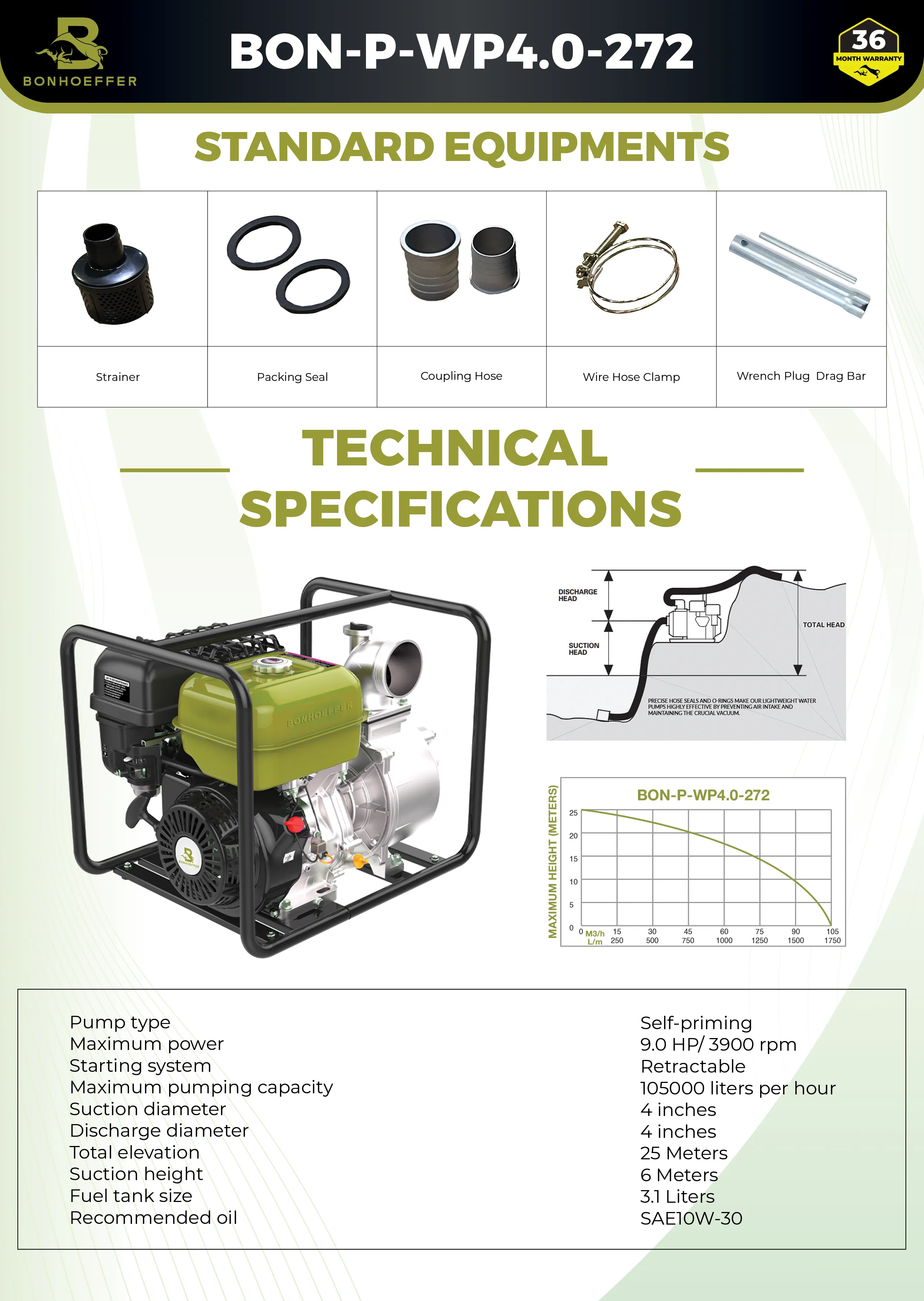

Technical Specification
Special Features

< >

BON-P-WP4.0-272

Pump Type : Centrifugal Self Priming, Monoblock Horizontal With Mechanical Seal
Displacement : 272 CC
Engine Power : 9 HP
Start System : Recoil
Suction Port Diameter : 4 inches
Discharge Port Diameter : 4 inches
Total Head (m) : 25
Suction Lift (m) : 6
Maximum Discharge (Litre Per Hour) : 105, 000
Dry Weight (kg) : 37
Impeller : 4 Vane Cast Iron
Compression Ratio : 8.5:1
Volute : Rigid Mounted Cast Iron
Mechanical Seal(Pump case) : Silicon Carbide

Special Features

OHV design enhances combustion efficiency
Durable silicon carbide mechanical seal
4 vane high efficiency impeller
Cast iron volute
Heavy duty full frame protection
Protected by bonhoeffer Oil Alert®
Easy starting bonhoeffer mini 4-stroke commercial engine

BON-P-WP4.0-272: High-Capacity Centrifugal Pump

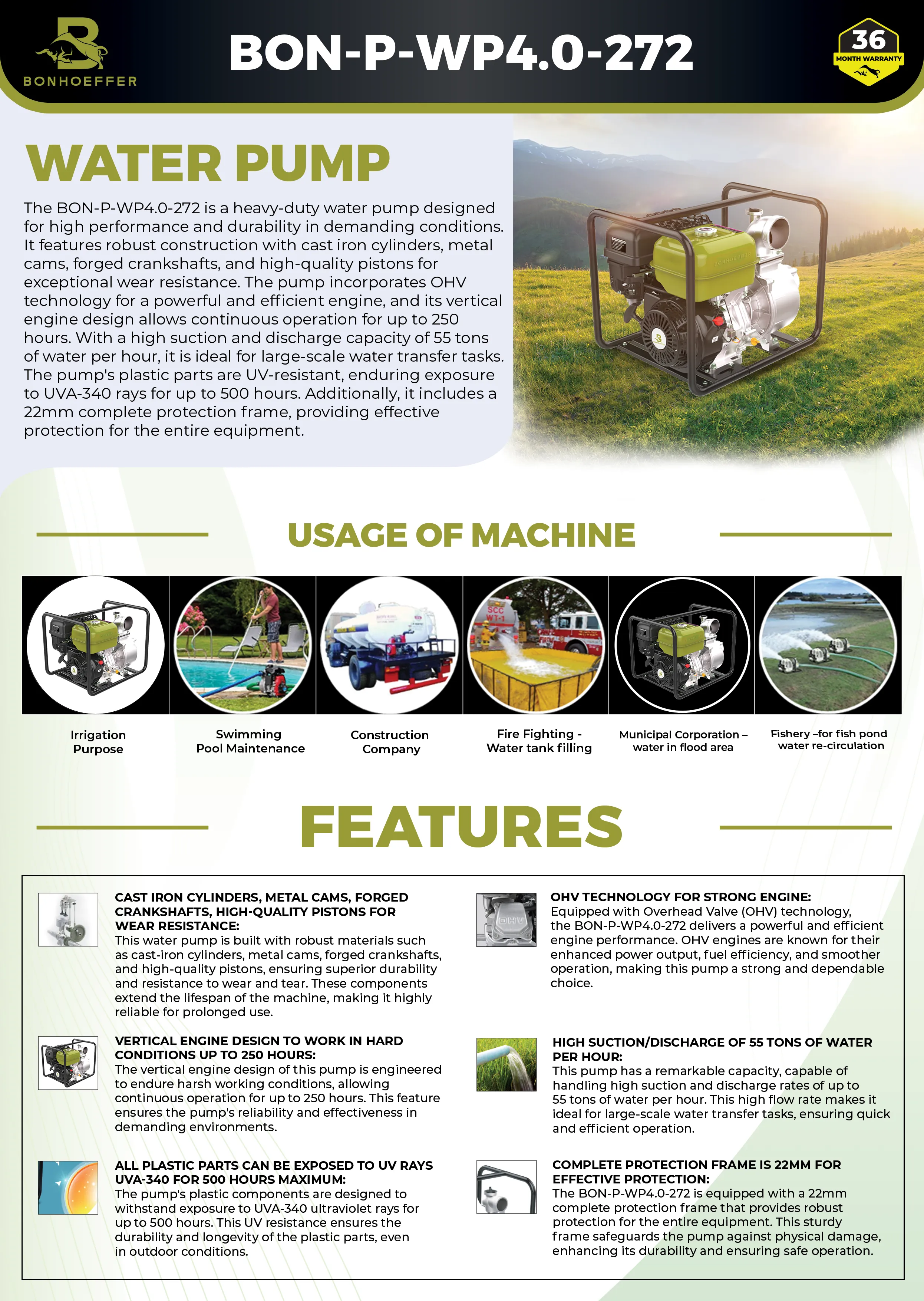

The BON-P-WP4.0-272 is a high-performance centrifugal self-priming water pump designed for heavy-duty applications. With a powerful 9 HP engine and a displacement of 272 CC, this pump achieves an impressive maximum discharge of 105,000 litres per hour. It features a 4-inch suction and discharge port, allowing for efficient water flow and handling. The pump can achieve a total head of 25 meters and a suction lift of 6 meters, making it suitable for various demanding water transfer tasks. Its recoil start system ensures easy and reliable operation.

Durable and Robust Design

Built to last, the BON-P-WP4.0-272 includes a 4-vane cast iron impeller and a rigid mounted cast iron volute for enhanced durability. The mechanical seal made of silicon carbide in the pump case ensures long-term reliability and minimal maintenance. Weighing 37 kg, this pump combines robust performance with a sturdy design, making it ideal for industrial, agricultural, and large-scale water management applications.

FAQ'S

1 .How to Storage my Bonhoeffer water pump Tips
- Self Priming
- Flush the pump case with clean fresh water, then completely drain to prevent damage from freezing
- Cover intake and discharge ports to prevent the entry of debris during storage
- The term Self Priming is actually an industry term that describes the ability of a pump to create a partial vacuum by purging air from the intake hose and pump casing. All Honda pumps are self priming by definition. All self priming pumps require water to be added to the pump casing to start the priming process.
2 .What are the priming tips for Bonhoeffer water pump
- Place the pump as close to the water source as possible. The less lift required will improve priming time
- Fill the pump case completely with water (Never operate a centrifugal pump without water in the pump casing)
- Start the pump engine
- By partially restricting the discharge hose, priming time can be improved
- Shutting off a pump will allow water to flow out of the suction hose, requiring priming.
- The use of a foot valve on the end of the suction hose will prevent water from flowing out of the suction hose if you stop the pump and reduce time required for the pump to regain its prime.
- Wear off the volute and Impeller can decrease pump performance and increase time required to prime the pump. Regular inspection and maintenance of your pump will maintain peak performance
3 .Can I use synthetic oil in my Bonhoeffer water pump?

Bonhoeffer water pump are developed, tested and certified with petroleum based motor oils as a lubricant. Synthetic oils may be used; however, any motor oil used in our water pump must meet all oil requirements as stated in the owner Manual. In addition, recommended oil change intervals must be followed.
4 .How do I clean the carburettor of a Bonhoeffer water pump?

See our Carburettor workshop Sheet to learn more about cleaning carburettors. Please be aware that the water pump should be serviced by an Bonhoeffer Authorized Dealer unless the owner has proper tools, service data and the necessary technical skills.
5 .What fuel should I use in my Bonhoeffer water pump?

Bonhoeffer water pump are designed and certified to run on regular unleaded gasoline containing no more than 5% ethanol (E10). Gasoline is allowed, by regulation, to contain a variety of additives. The same regulation limits how much of some additives, such as alcohol, can be included in the fuel and still allow it to be sold as gasoline. If you look in a Bonhoeffer product owner’s manual, you will see that a maximum of 5% ethanol is allowed (other oxygenates are also listed). Bonhoeffer water pump are designed for good performance and efficient operation using gasoline containing from 0 to 5% ethanol. Always refer to the owner’s manual for your Bonhoeffer to get a list of recommended fuel and the current approved additives. For more information, see our Fuel Recommendations Link . Download or print a handout on how to avoid fuel-related problems for your Bonhoeffer general purpose water pump
6 .What should I do if I didn't receive all the parts or materials when I purchased my Bonhoeffer Product?

If you purchased a new piece of equipment and are missing parts or manuals, you need to contact your selling dealer. If you have further questions, you may contact our Customer Relations office at Manuals and Brochures
7 . How can I get an Owner's Manual?

Owner's Manuals for General Purpose Water pump can be downloaded from our website. Find link.
8 .What actions do I take when the Water pump is running poorly?
- If a problem occurs with the spark plug:
- Check the spark plug HT wire and connect it if necessary.
- Remove the spark plug cap. Clean any dirt from around the spark plug base, and then remove the spark plug.
- Grounding the side electrode to the engine, pull the recoil starter to see if sparks jump across the gap. If there is no spark, replace the plug. If there is a spark, reinstall the spark plug and start again.
- If the air cleaner is clogged, clean or replace the air cleaner.
- If the carburetor is clogged, clean the carburetor See our carburettor workshop sheet to learn more about cleaning carburetors.
- Check if the valve clearance is correct. If not, readjust the valve clearance to the correct setting by the help of Filler gauge.
- Check if the governor is out of adjustment. If so, readjust the governor.
- If the problem is not solved, take your water pump to an authorised Bonhoeffer dealer
